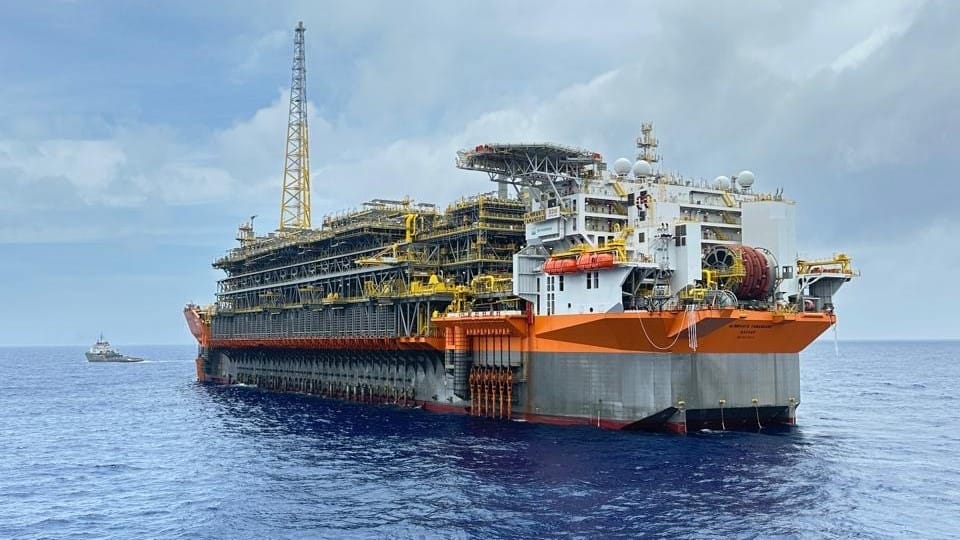

SBM Offshore has recently chosen Siemens Energy to supply power generation and gas compression systems for Petrobras’ platforms located in Brazil’s Sergipe-Alagoas basin. The apparatus will be set up on floating production, storage, and offloading (FPSOs) ships supporting two platforms, P-81 and P-87. SBM Offshore will deliver and operate both of these FPSOs. These pipelines will link to a specific gas export conduit designed to transport gas from offshore locations to onshore installations. The FPSOs need a reliable power source for pumps, compressors, separation machinery, control systems, lighting, water treatment, and various auxiliary systems. Siemens Energy’s power generation equipment will play a crucial role in the electrical infrastructure of the vessels. The electrical framework needs dependable elements that can function in tough maritime conditions. This situation generates a need for devices and hardware like cable accessories, connectors, spool bolts, surge protection devices, and insulators.

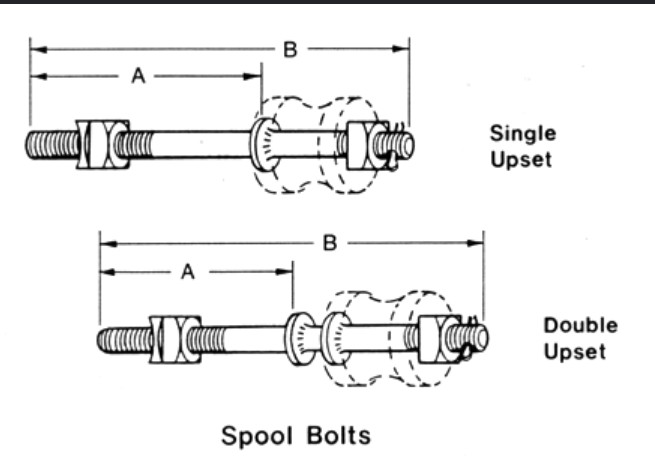

High-quality spool bolts secure and support cables, conductors, and brackets in electrical and offshore environments. They ensure mechanical stability, alignment, and reliable equipment-to-equipment connections. Spool bolts in the FPSO help maintain the integrity of mounted electrical and mechanical assemblies. They also reduce cable abrasion, excessive bending, and interference with adjacent equipment. Properly specified bolted connections help prevent loosening and displacement. They keep interconnected equipment and support components in their designed positions. The offshore environment makes corrosion resistance, mechanical strength, dimensional accuracy, and fastening reliability important. Using the spool bolts forms part of the mechanical support system that protects electrical connections from vibrations and movement.
Quality assurance for spool bolts used in FPSOs and electrical equipment
Spool bolts in FPSO equipment face vibration, saltwater atmosphere, temperature variations, mechanical loading, and demanding installation conditions. Quality assurance focuses on the project’s material requisition, applicable Petrobras specifications, and international standards. Supplier quality assessment covers the quality management system, manufacturing process, final product, and inspection records. QA ensures that every spool bolt installed on an FPSO has the correct material, dimensions, mechanical properties, and surface protection. Quality assurance is crucial because Petrobras project documentation incorporates technical specifications, inspection requirements, and applicable classification society into FPSO projects. Quality assurance for spool bolts prevents failures such as thread damage, inadequate strength, corrosion, improper torque, and dimensional errors.
The importance of spool bolts in FPSOs and electrical equipment
Spool bolts help in assembling and securing support structures, brackets, equipment interfaces, and cable-support systems. Reliable spool bolts withstand vibration, dynamic loads, corrosion, temperature variation, and continuous operation. The bolts ensure a secure mechanical connection that maintains cable routing, equipment positioning, and support integrity. Here are their roles in the infrastructure.
- Securing equipment and support assemblies—spool bolts provide mechanical fastening between components. They connect brackets, supports, clamps, mounting structures, and equipment interfaces.
- Supporting cable and electrical interconnections—the bolts serve in support arrangements for cables, trays, conduits, and electrical equipment. They maintain the component position to prevent bending, abrasion, and mechanical loading on cables.
- Maintaining structural alignment—properly bolted connections help keep interconnected components aligned. This alignment is crucial where equipment, cable entries, supports, and connection points remain within specified installation tolerances.
- Withstanding installation and maintenance—bolted connections are easier to dismantle and reassemble than a permanent welded connection. This is crucial during equipment replacement, inspection, maintenance, and modification activities.
- Maintaining mechanical integrity of interconnection systems—spool bolts help transfer and distribute mechanical loads through support assemblies.
Contributions of gas export pipelines to Brazil’s gas market
The gas export pipeline serves as a crucial connection between Brazil’s offshore gas reserves and its internal gas market. Petrobras’s Seripe Aguas Profundas (SEAP) initiatives: Petrobras is advancing its Seripe Aguas Profundas (SEAP) initiatives to boost domestic gas supply. to boost domestic gas supply. Here are their main contributions to Brazil’s gas market.
- Linking offshore output to onshore needs—the pipeline offers the necessary connection for transporting processed gas from offshore FPSOs to onshore facilities. The link enables gas generated offshore to be commercially viable instead of being confined to the production location.
- Enhancing domestic gas supply—the initiative aims to boost national gas availability through anticipated processing capabilities. The pipeline infrastructure will thus ease the transformation of offshore production capacity into real market supply.
- Aiding gas-fired power production—natural gas offers flexible generation that supports intermittent renewable sources.
- Generating infrastructure and equipment requirements—the establishment of an offshore gas export pipeline created a need for specialized infrastructure.
