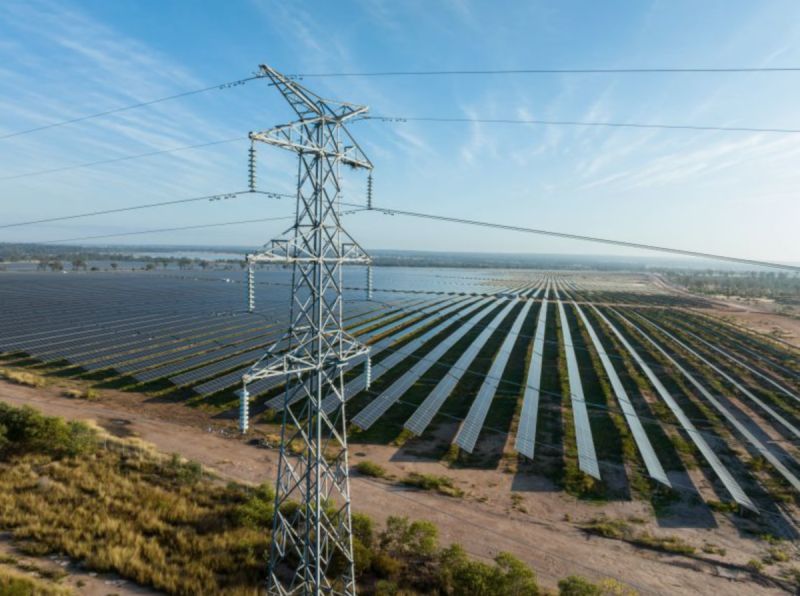

Argentina has high potential and resources for solar energy generation, especially in the Andes and Cauchari regions. Mundo Marino covers 80% of its electricity demand with renewable energy from the El Quemado Solar Park in Mendoza. The solar park has an installed capacity of 305 MW and represents 11% of the country’s solar power. The contract allows for the supply of 2,400 MWh of renewable energy per year. The solar farm includes photovoltaic modules, utility-scale string inverters, and step-up transformers. It also includes grid interconnection and SCADA monitoring systems. These interconnections use the socket eye clevis to link the structural mounting systems for the solar panels and the high-voltage transmission and interconnection hardware. This is crucial because electricity generated at the Solar Park passes through several stages. The solar modules generate DC electricity, inverters convert DC to AC, step-up transformers raise voltage, and electricity enters the high-voltage transmission network.
The socket-eye clevis acts as a pivotal connection point linking aluminum support rails to vertical steel posts in the ground. These connections transfer mechanical loads like the weight of solar panels, wind uplift forces, and shear loads into the supporting structure. The clevis serves as the joint between the rotating torque tube and a pin, creating a secure pivot point that allows for controlled rotational movement. The clevis design allows for vertical and angular adjustment during installation. This is essential for leveling long rows of panels on uneven terrain and for accommodating thermal expansion and contraction. The socket-eye clevis provides a robust and reliable mechanical link between insulator strings and the supporting transmission tower. It connects the conductors carrying the electricity from the solar farm’s substation to the electrical grid.
Quality assurance for socket eye clevises used in Argentina’s solar park
Socket eye clevises connect insulator strings, suspension hardware, and conductors in overhead transmission and substation infrastructure. In the solar park infrastructure, the clevis supports the transmission infrastructure that exports renewable electricity from the solar park to the grid. Conducting quality assurance for the clevis helps detect mechanical failures that interrupt power transmission. QA ensures that every socket-eye clevis meets the mechanical, dimensional, and corrosion-resistance requirements. Quality assurance helps maintain transmission line reliability, prevent premature hardware failures, and support uninterrupted renewable energy delivery. Manufacturers conduct quality assurance from material verification and forging control, mechanical testing, corrosion protection, and traceability. This helps deliver clevises that provide safe and reliable service for Argentina’s renewable energy transmission infrastructure.
Significance of socket eye clevis in solar park infrastructure in Argentina
Utility-scale solar generation in Argentina relies on reliable transmission infrastructure to deliver electricity from solar plants to the grid. Socket eye clevises ensure the safe mechanical support of energized conductors under diverse environmental conditions. Here are the roles of the socket eye clevis in solar park infrastructure.
- Connecting insulator strings – the socket clevis connects insulator strings within transmission line assemblies. It provides a secure mechanical connection between suspension insulators, tension insulators, yoke plates, and tower attachment hardware.
- Supporting mechanical loads—the clevis withstands conductor tension, insulator string weight, hardware loads, and dynamic wind forces.
- Allowing controlled articulation—the socket eye clevis allows limited rotational movement to allow insulator strings to align under load.
- Maintaining electrical clearances – the clevis maintains conductor positioning for transmission system reliability. This reduces the likelihood of flashovers and insulation failures.
- Supporting high-voltage power evacuation—socket eye clevises help support the overhead line infrastructure transmitting solar electricity to the grid.
Technical aspects of the solar farm supplying electricity
The El Quemado Solar Park is one of Argentina’s largest photovoltaic power plants with an installed capacity of 305 MW. The plant supplies 2,400 MWh of renewable electricity annually in the country. The technical aspects of the facility include:
- Utility-scale PV generation – the El Quemado solar power station converts solar irradiance into electrical energy through the PV effect.
- High-efficiency bifacial solar modules—these panels generate electricity from the front and rear surfaces by capturing reflected sunlight from the ground.
- Inverter system – the inverter system provides DC-to-AC conversion, voltage regulation, frequency synchronization, and reactive power control.
- Grid integration with SADI—the solar plant connects to the SADI to enable renewable electricity delivery to consumers.
- High-voltage substation—the solar park includes a 220/33 kV substation that steps up the generated electricity for long-distance transmission.
